China Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System wholesale

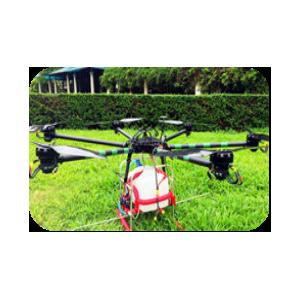

Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System

Ask Latest Price

Video Channel

Place of Origin :China

Brand Name :GL

Certification :CE

Model Number :GLX4

Protection Level :IP67

Type :Outlet Box

External Size :2450*2450*550mm

Flight Duration (No-load) :20~25min

Flight Duration (Loading10L) :15min

Axle Diameter :1.7M

Wingspan Size :2.45M

Battery capacity :22000mAh

MOQ :1

Price :USD11000

Packaging Details :Aluminum case

Delivery Time :7Days

Payment Terms :T/T

Supply Ability :500SETS/WEEK

Contact Now

Add to Cart

View Product Description

Agricultural Spray Drones,uavs 10L Container with UAV Self Stabilization System

Maximum take-off height above sea level:4500m

Max. cruising speed (No load):9-12m/s

Max. cruising speed (Full load):7m/s

Voyage Distance (without ground station):1~2km

Flying height:0.5-4m Above Crop (or Trees) during field operation

Environment Temperature :－20℃~50℃

Max.Flight Altitude:1000m

Spraying Efficency:1~3 acre/minute

Hover Accuracy :Horizontal ±1.5m, Vertical ±0.5m

Hover Features:

Arbitrary position direction air hover,Flying in any direction,To be reversed to fly Emergency brake

Frame:

Carbon Fiber Frame: 900g

High Efficiency Disc Motor:

Motor-5010: 335kv

High Efficiency Disc Motor:Motor-5010: 335kv

Propeller:28 Inch Plant Protection Carbon Fiber Propeller

ESC: Hobbywing ESC: 80A

Flight Control:DJI Professional Stable Flight Control System

The Main Battery:Battery-CP:

High Performance Lithium Polymer Battery

22.4V/22000mAH 6S1P

The Supporting Battry:

Battery-CP-Mini:

Lithium Polymer Battery

11.1V/2200mAh 3S1P

Remote Control:WFLY: 2.4G, 9 channel

Ground monitoring system:

Integrated Ground Surveillance System: 5.8G image transmission receiving system, support designed conected with the remote controller.

Monitoring Camera:HD-CP Camerea: For monitoring: 700P HD

Spraying task system:Dispersion Spray System and Booster Pump
